Creative Fabrication Designs and Blueprinting
Invent and Create
The equipment we currently run to help you along the way:

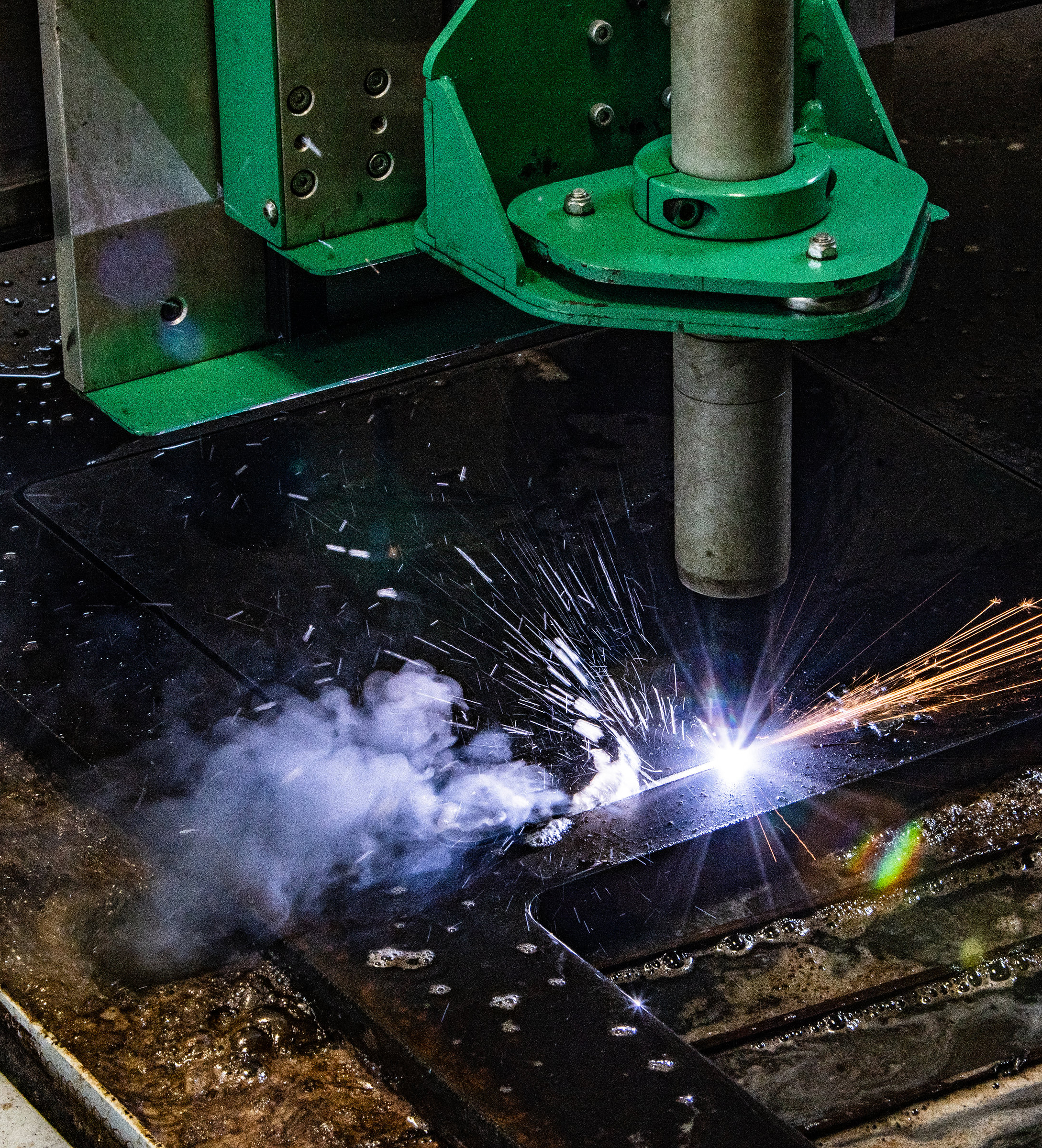

- 5’x10′ CNC plasma cutting table equipped with a Hypertherm Powermax 85
- 20 Ton Press brake
- Mediablasting
- Spray Coat finishing
- ABS 3D printing with 6″x 8″x 6″ build volume
And so much more to come very soon.
What do we offer?
Branding Swag

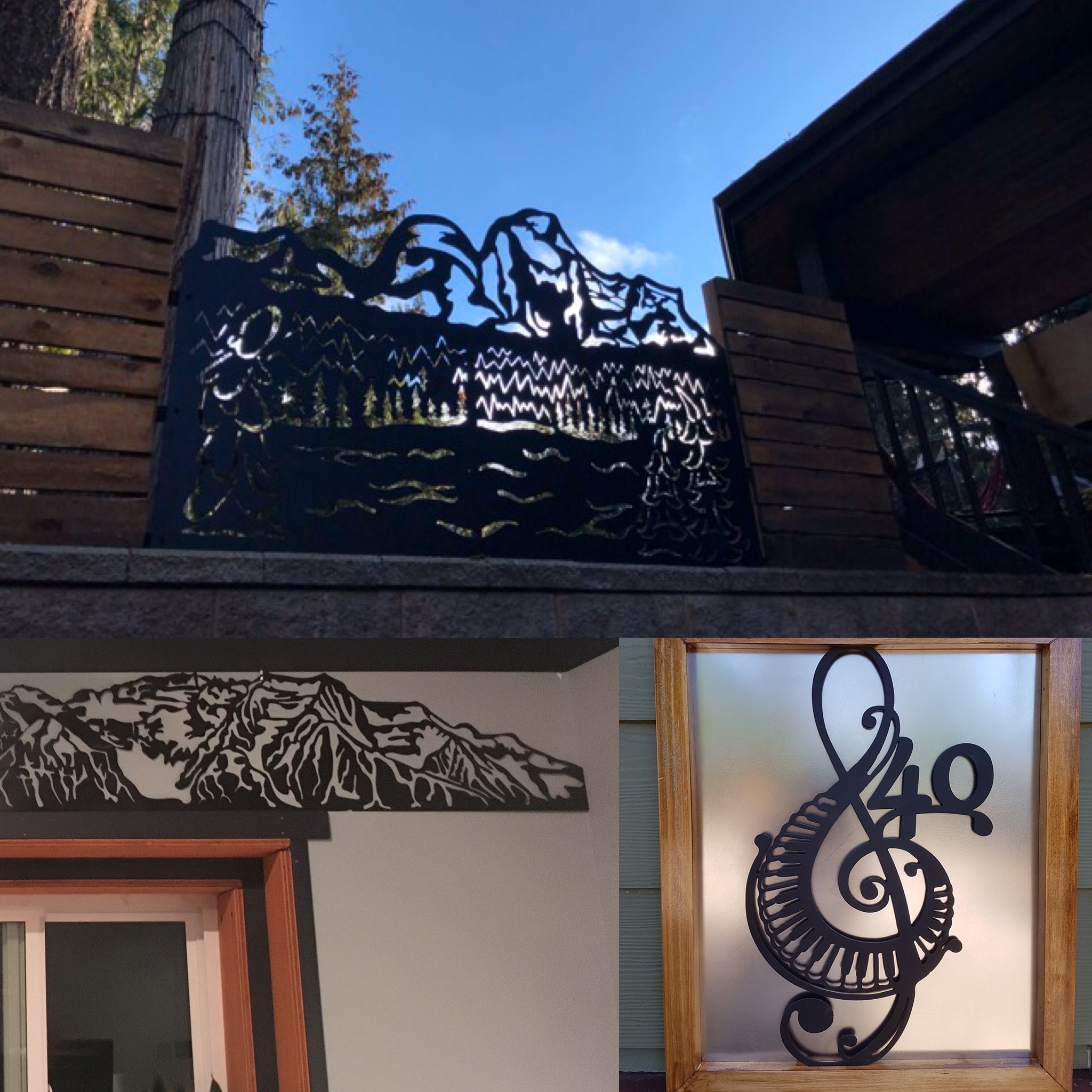

Creative Metal Work Design

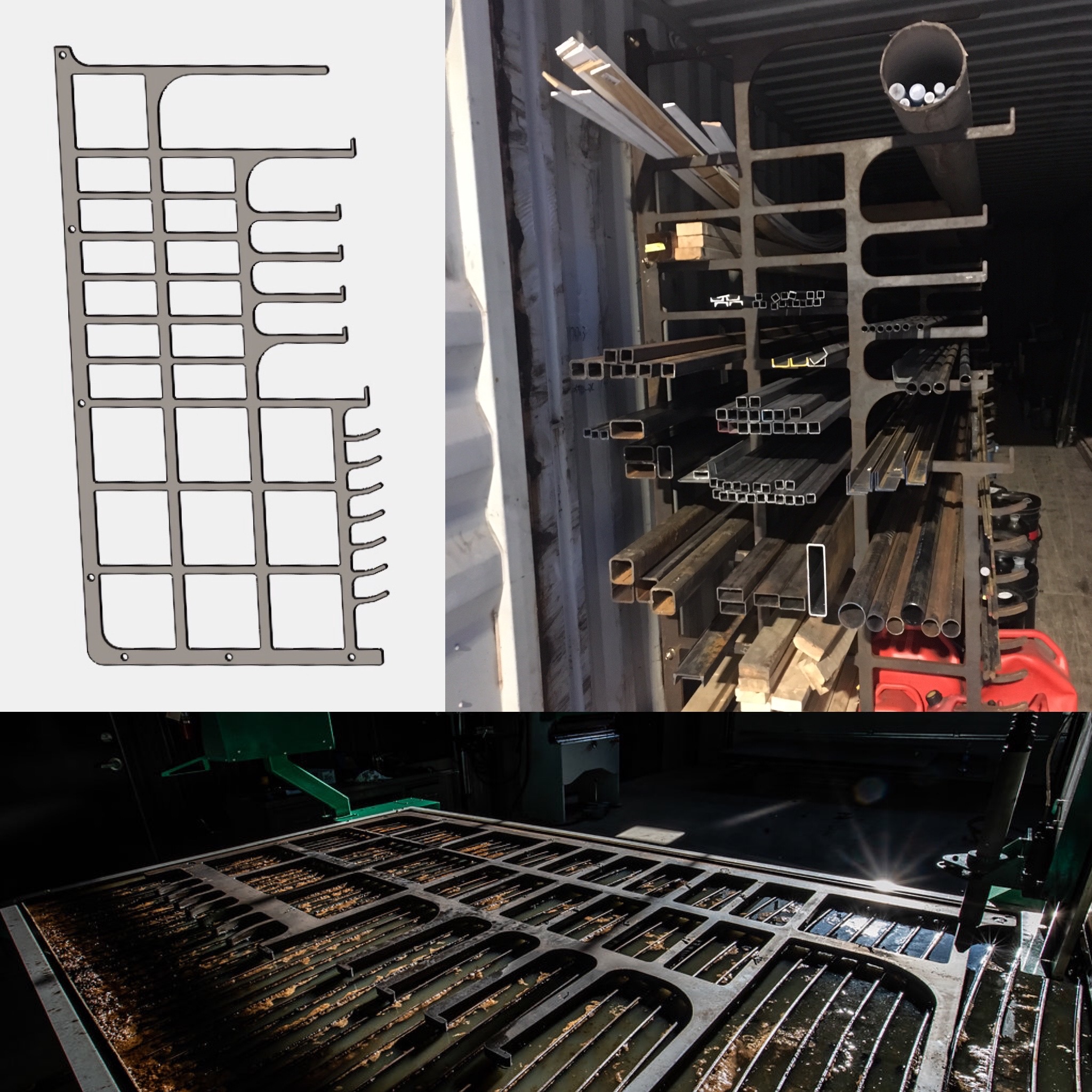

CADD for CNC plasma/laser cutting

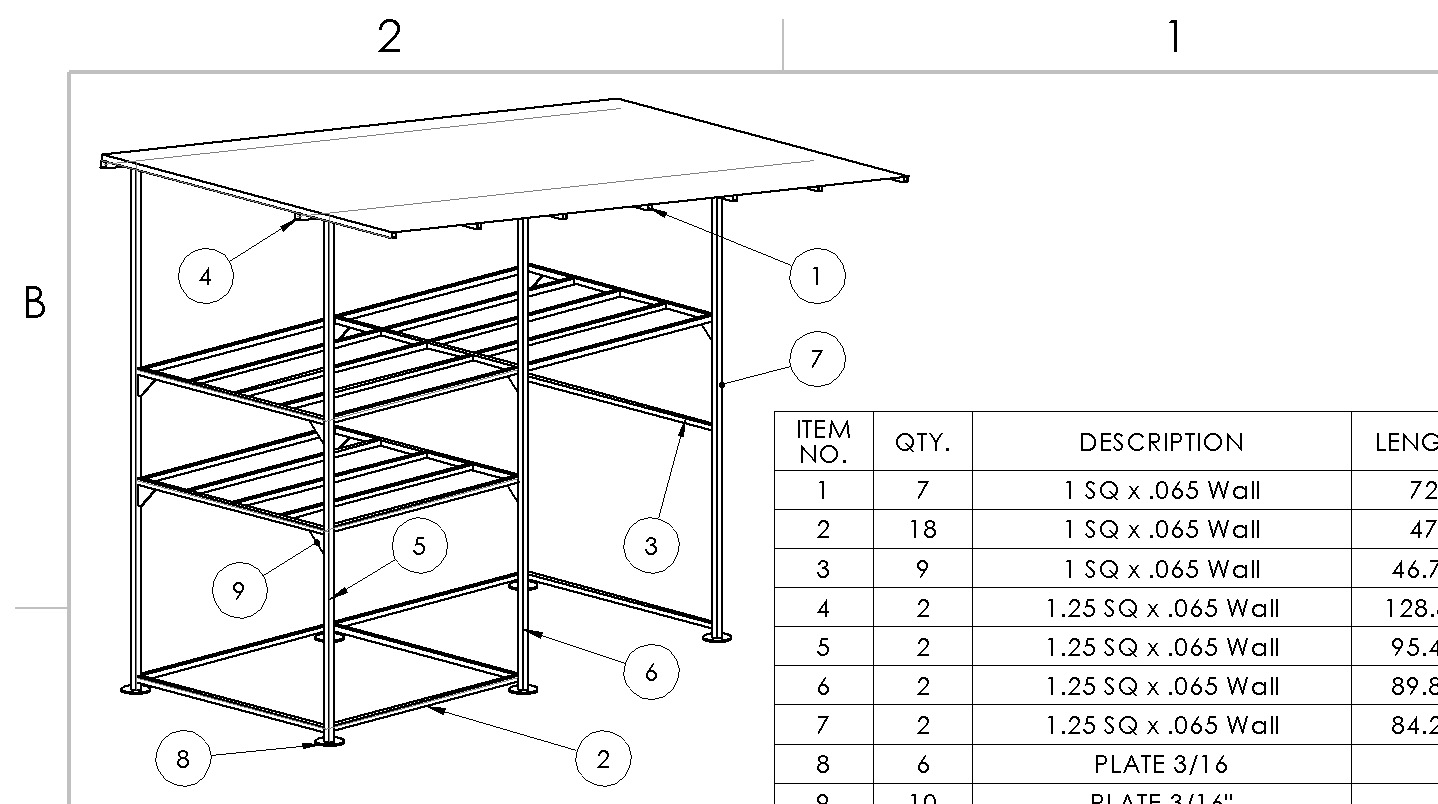

3D Assembly and Fabrication Drawings

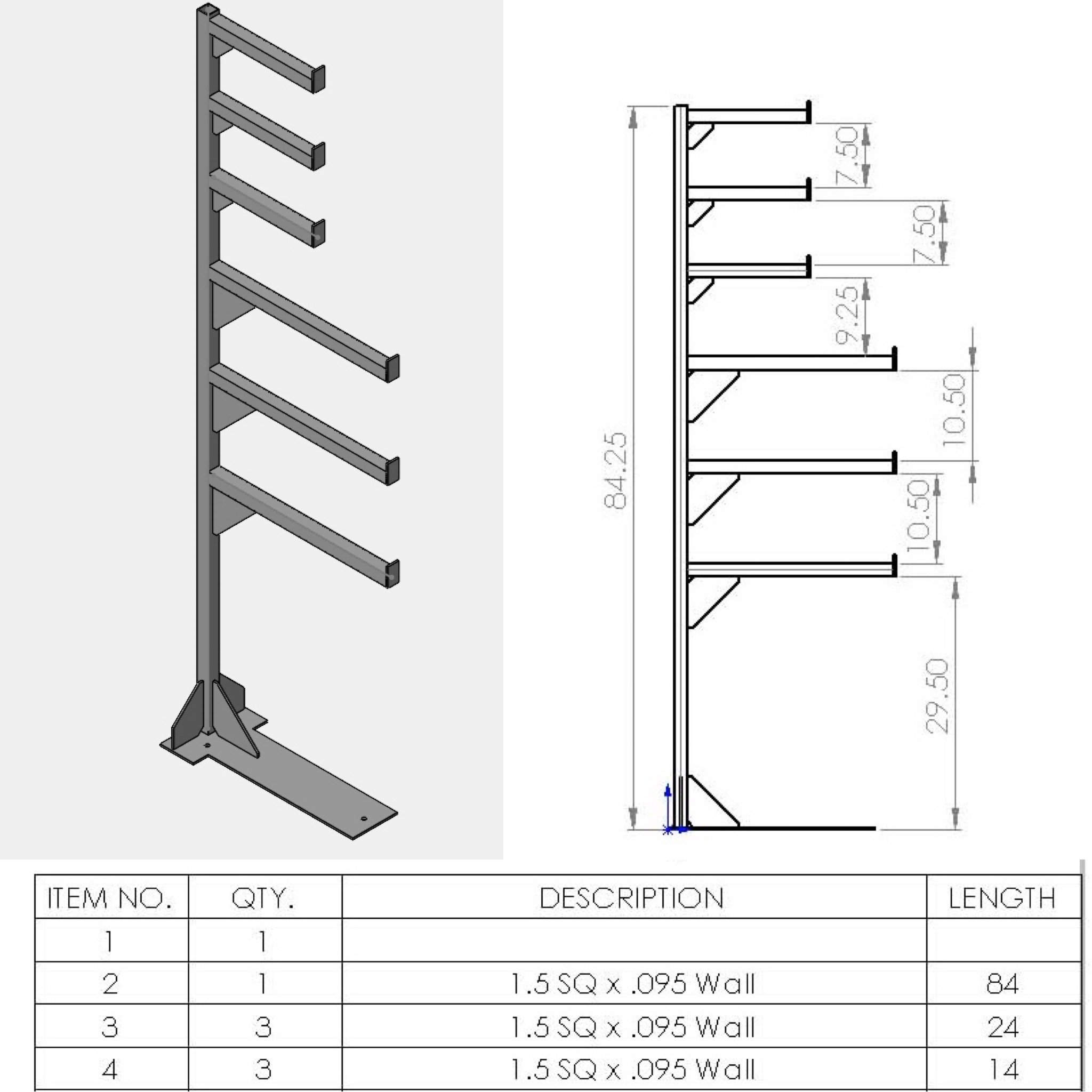

Steel Take-Offs, Cut lists and Drawings
CNC Plasma Cutting
A Bit About Expound Drafting
With 20 years in Heavy Construction, Maintenance, and Millwright/Fabrication work I have a strong background in reading and writing detailed and complex blueprints. After an extensive hands on career in multiple industries and 6 years using software like Solidworks 3D as my primary design tool I have become extremely proficient using the software to design parts, and steel works all shapes and sizes in 3D and converting them into fabrication drawings you can bring to the shop floor.
Working with more modern fabrication equipment and a strong computer background I myself as a Fabricator/Machinist understand what is needed in a drawing for the fabricator to do their job quickly, easily and without confusion. I also have a strong creative background and have developed several styles to incorporate artwork, business logos and graphics into the steel work. Creating possibilities for endless types of designs in my work.
So if you’re looking for that really creative piece for you boardroom or backyard. Or you just need some fabrication drawings for your next project. I am here to help. I also do material take-offs as well
Latest News
Ability to invent new and old parts in the remote parts of BC
Metal is a universal launguage, it has been used by humans through out most of our existence. Building extravagant architecture, giving designers and engineers the infinite ability to invent new and old parts and bring them to life. Big Bend Fab Works has ample...
Custom Sheet Metal Design in Revelstoke
Are you a Home owner? Business owner? Blacksmith? With our Custom Sheet Metal Design in Revelstoke, we tailor specific to your project. Using our CNC machine, computer software and helpful staff, we can bring whatever project or designs you need to metal life. One...
